Description

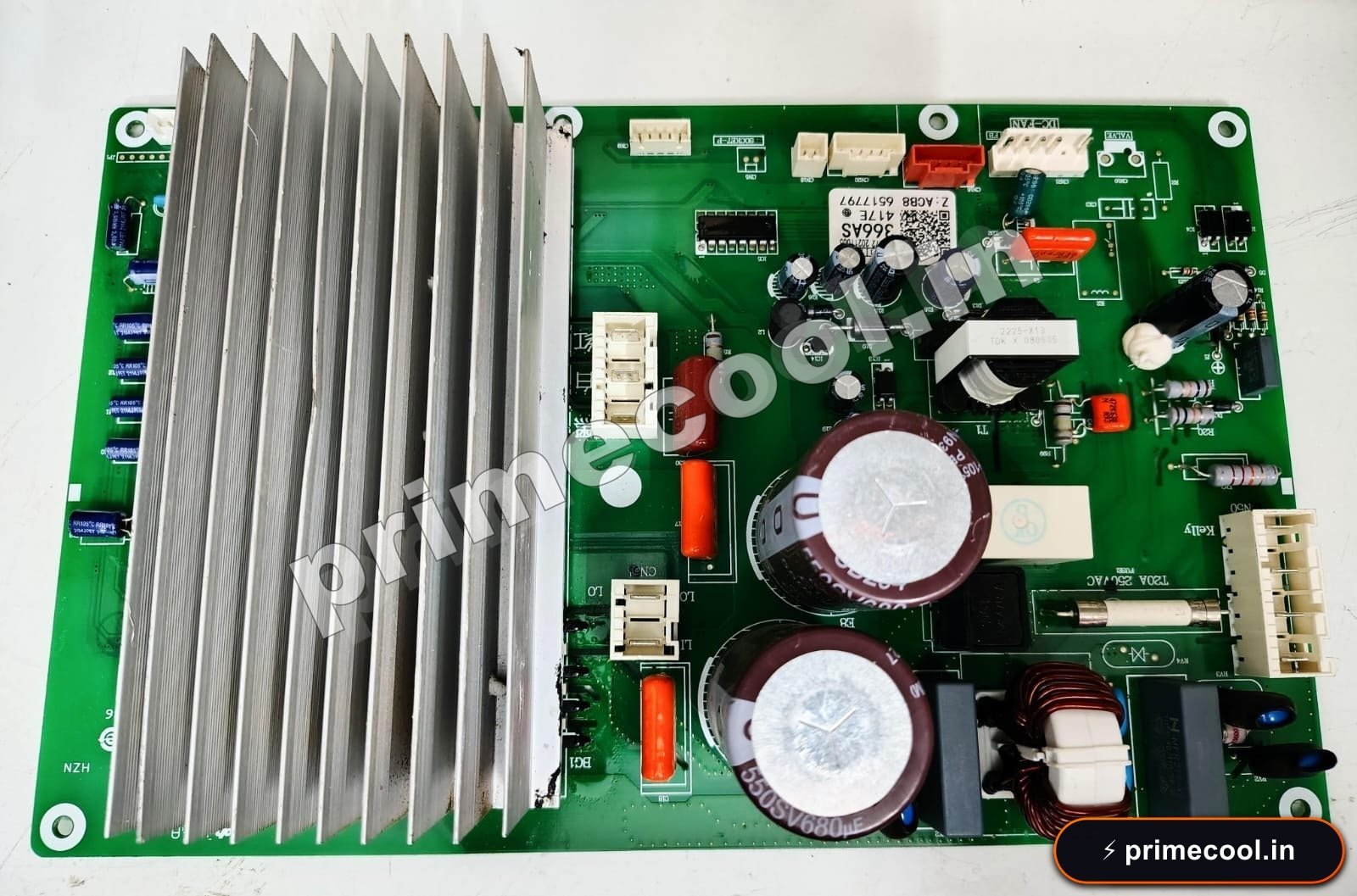

AC PCB HAIER (Outdoor) — SPECIFICATION :
Key Product Highlights & Features:
- Guaranteed Compatibility: Engineered to exact OEM specifications for HAIER and compatible inverter equipment.
- Pre-Tested Reliability: Rigorously inspected by ACPCB for thermal resilience, voltage stability, and signal integrity.
- Durable PCB Construction: Manufactured with high-grade fiberglass FR-4 substrate and anti-corrosive coating for prolonged lifespan.
- Direct Drop-in Replacement: Standardized pinouts and mounting holes for rapid, hassle-free installation.
- Technical Support: Backed by dedicated ACPCB inverter AC troubleshooting guidance and verified pinout records.
Technical Specifications
| | Thickness |
|---|---|
| 1.6 mm | Compatibility |
| Split AC | Usage/Application |
| Electronics | Brand |
| Carrier | Current Type |
| AC | Frequency |
| 50 Hz | Country of Origin |
| Made in India | Material |
| Product Type | Outdoor AC PCB |
| Compatible Brand | HAIER |
| Condition | 100% Brand New & Factory Tested |
| Quality Standard | OEM Industrial Standard / RoHS Compliant |
| Testing Certification | QC Passed – Voltage & Current Load Tested |
Professional Installation Guidelines:
1. Always disconnect the main power supply and discharge high-voltage DC filter capacitors before handling or replacing electronic boards.
2. Ensure uniform application of premium thermal conductive paste between heatsinks and power semiconductor modules (IPM/IGBT).
3. Verify wiring harness connections against terminal labels prior to powering on the system.
Package Contents:
• 1 x AC PCB HAIER (Outdoor)
• Protective ESD anti-static bubble packaging & safety outer box from ACPCB.
