Description

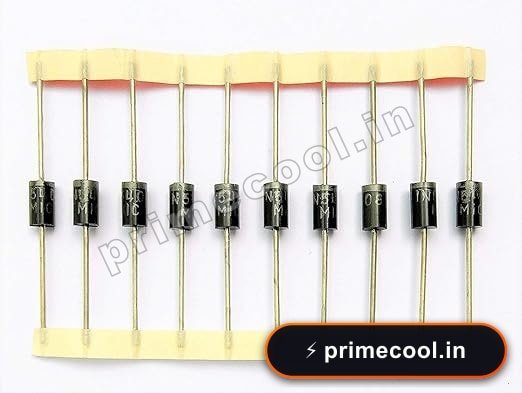

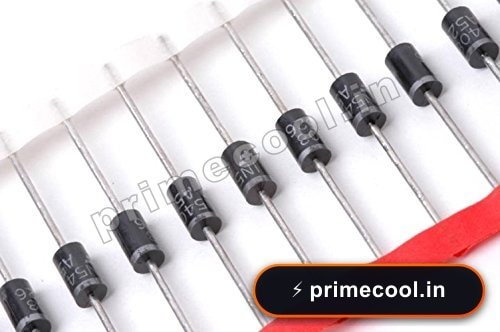

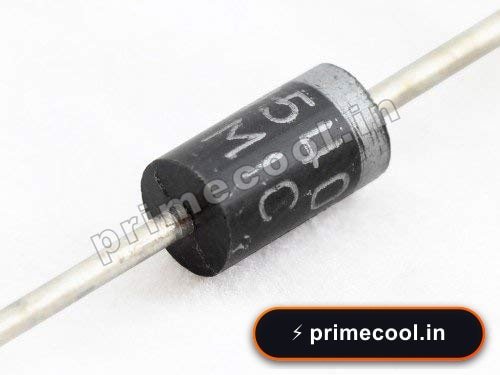

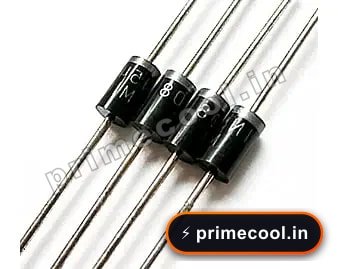

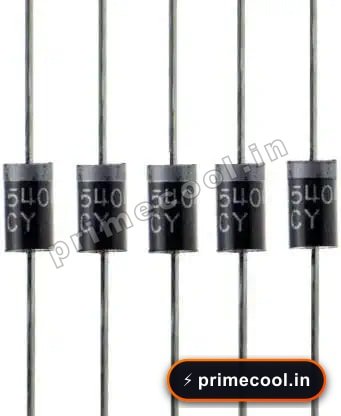

Component DIODE IN5408 AC (50PCS) — 1N5408 Rectifier Diode IN5408 3 A 1000 V
Key Product Highlights & Features:
- Guaranteed Compatibility: Engineered to exact OEM specifications for OEM / Universal and compatible inverter equipment.
- Pre-Tested Reliability: Rigorously inspected by ACPCB for thermal resilience, voltage stability, and signal integrity.
- Durable PCB Construction: Manufactured with high-grade fiberglass FR-4 substrate and anti-corrosive coating for prolonged lifespan.
- Direct Drop-in Replacement: Standardized pinouts and mounting holes for rapid, hassle-free installation.
- Technical Support: Backed by dedicated ACPCB inverter AC troubleshooting guidance and verified pinout records.
Technical Specifications
| IN5408 Data | Forward rectified current:3A,Maximum recurrent peak reverse voltage:1000V |
|---|---|
| Feature | Low forward voltage/High current capability/Low leakage current/High surge capability |
| Case | Molded plastic use UL 94V-0 recognized Flame retardant epoxy |
| Terminals | Axial leads, solderable per MIL-STD-202 |
| Polarity | Color band denotes cathode |
| General purpose rectification of power supplies, inverters, converters and freewheeling diodes application. Features/Specs | Low forward voltage drop Low leakage current High forward surge capability |
| Product Type | Diode |
| Compatible Brand | OEM / Universal |
| Condition | 100% Brand New & Factory Tested |
| Quality Standard | OEM Industrial Standard / RoHS Compliant |
| Testing Certification | QC Passed – Voltage & Current Load Tested |
Professional Installation Guidelines:
1. Always disconnect the main power supply and discharge high-voltage DC filter capacitors before handling or replacing electronic boards.
2. Ensure uniform application of premium thermal conductive paste between heatsinks and power semiconductor modules (IPM/IGBT).
3. Verify wiring harness connections against terminal labels prior to powering on the system.
Package Contents:
• 1 x Component DIODE IN5408 AC (50PCS)
• Protective ESD anti-static bubble packaging & safety outer box from ACPCB.
