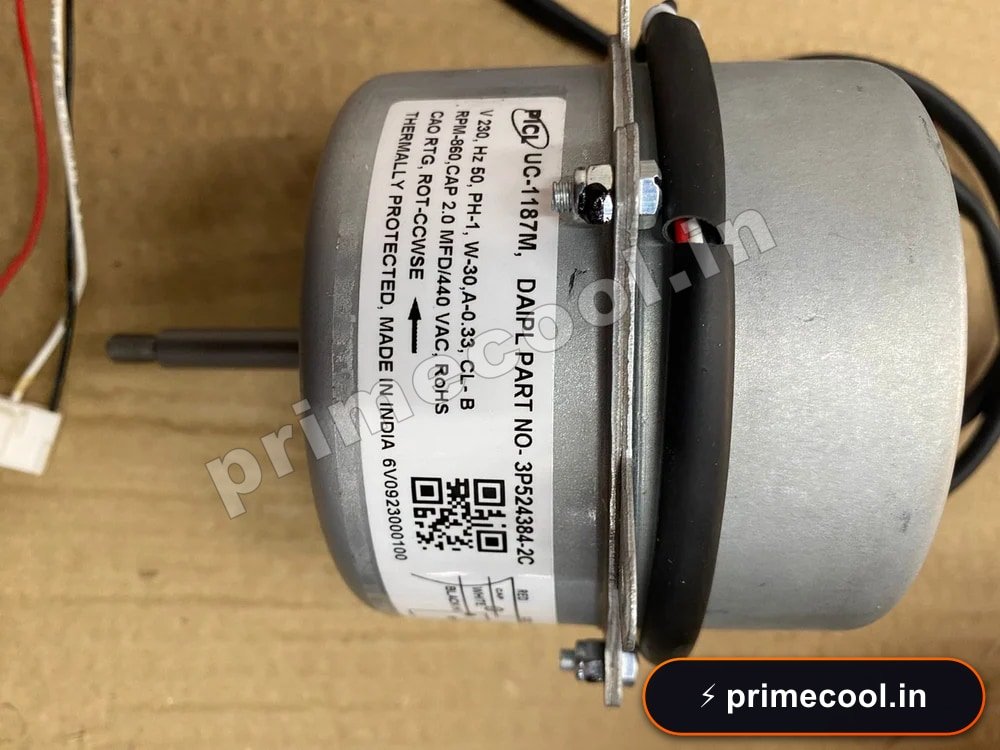

DAIKIN OUTDOOR AC FAN MOTOR — SPECIFICATION :
Key Product Highlights & Features:
- Guaranteed Compatibility: Engineered to exact OEM specifications for DAIKIN and compatible inverter equipment.
- Pre-Tested Reliability: Rigorously inspected by ACPCB for thermal resilience, voltage stability, and signal integrity.
- Durable PCB Construction: Manufactured with high-grade fiberglass FR-4 substrate and anti-corrosive coating for prolonged lifespan.
- Direct Drop-in Replacement: Standardized pinouts and mounting holes for rapid, hassle-free installation.
- Technical Support: Backed by dedicated ACPCB inverter AC troubleshooting guidance and verified pinout records.
Technical Specifications
| Power | 30 W |
|---|---|
| Unit Type | Split |
| Speed | 850 rpm |
| Voltage | 230 V |
| Phase | Single Phase |
| AC Ton Capacity | 1 ton |
| Model Number | UC-1187M |
| Mounting Style | Round |
| Certification | RoHS |
| Frequency | 50 Hz |
| Application | daikin |
| Current | 230V |
| Brand | Daikin |
| Product Type | Outdoor Fan Motor |
| Compatible Brand | DAIKIN |
| Condition | 100% Brand New & Factory Tested |
| Quality Standard | OEM Industrial Standard / RoHS Compliant |
| Testing Certification | QC Passed – Voltage & Current Load Tested |
Professional Installation Guidelines:
1. Always disconnect the main power supply and discharge high-voltage DC filter capacitors before handling or replacing electronic boards.
2. Ensure uniform application of premium thermal conductive paste between heatsinks and power semiconductor modules (IPM/IGBT).
3. Verify wiring harness connections against terminal labels prior to powering on the system.
Package Contents:
• 1 x DAIKIN OUTDOOR AC FAN MOTOR
• Protective ESD anti-static bubble packaging & safety outer box from ACPCB.
