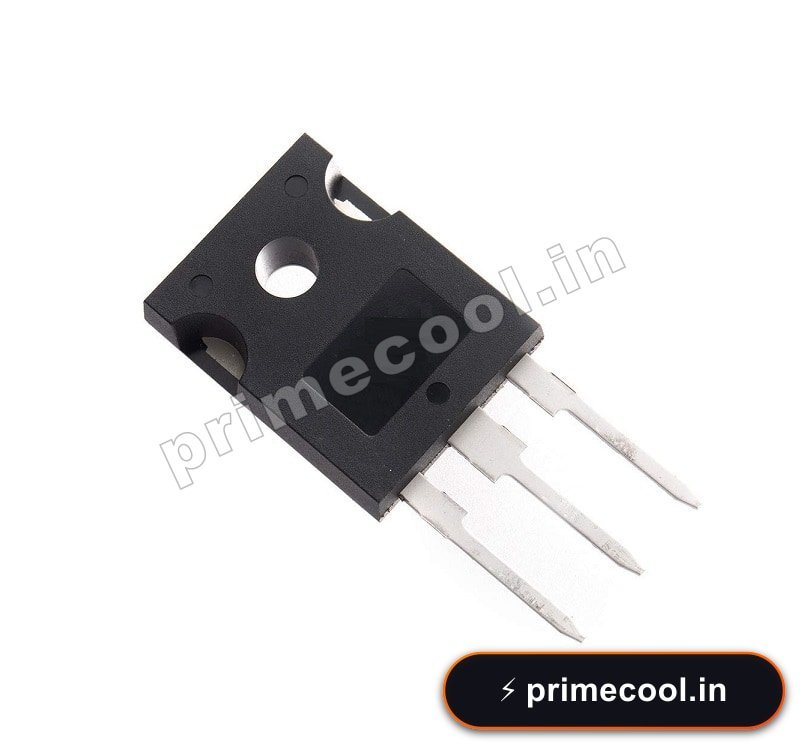

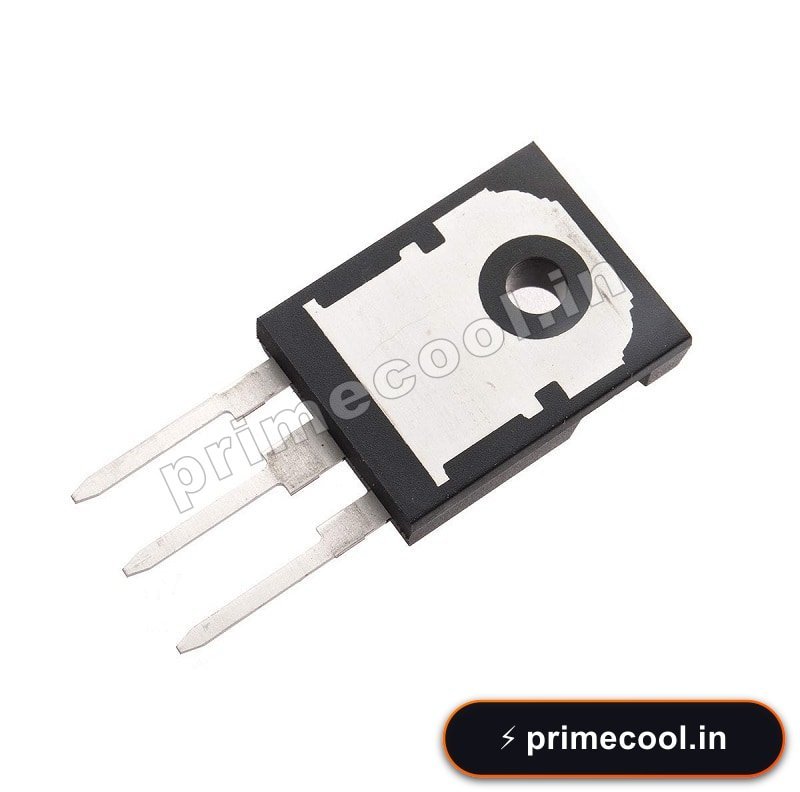

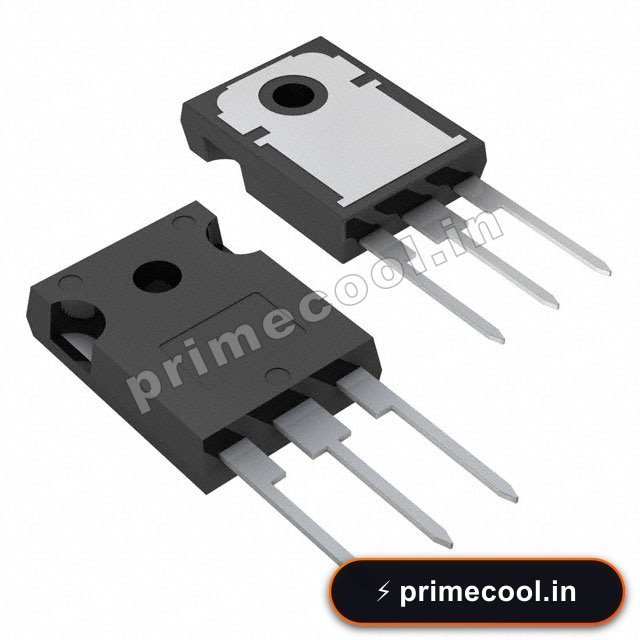

IGBT 6W30NC60WD (2PCS) — 6W30NC60WD – 600V 30A Ultra Fast Witching Power IGBT.
Key Product Highlights & Features:
- Guaranteed Compatibility: Engineered to exact OEM specifications for OEM / Universal and compatible inverter equipment.
- Pre-Tested Reliability: Rigorously inspected by ACPCB for thermal resilience, voltage stability, and signal integrity.
- Durable PCB Construction: Manufactured with high-grade fiberglass FR-4 substrate and anti-corrosive coating for prolonged lifespan.
- Direct Drop-in Replacement: Standardized pinouts and mounting holes for rapid, hassle-free installation.
- Technical Support: Backed by dedicated ACPCB inverter AC troubleshooting guidance and verified pinout records.
Technical Specifications
| Product Type | IGBT Transistors |
|---|---|
| Number of Channels | 1 Channel |
| Collector-Emitter Voltage | 600V |
| Collector current (continuous) at 25°C | 60A |
| Collector current (continuous) at 100°C | 30A |
| Collector current (pulsed) | 150A |
| Turn-off latching current | 150A |
| Gate-emitter voltage | ±20V |
| Power Dissipation | 200W |
| Operating Temperature | -55°C ~ 175°C |
| Compatible Brand | OEM / Universal |
| Condition | 100% Brand New & Factory Tested |
| Quality Standard | OEM Industrial Standard / RoHS Compliant |
| Testing Certification | QC Passed – Voltage & Current Load Tested |
Professional Installation Guidelines:
1. Always disconnect the main power supply and discharge high-voltage DC filter capacitors before handling or replacing electronic boards.
2. Ensure uniform application of premium thermal conductive paste between heatsinks and power semiconductor modules (IPM/IGBT).
3. Verify wiring harness connections against terminal labels prior to powering on the system.
Package Contents:
• 1 x IGBT 6W30NC60WD (2PCS)
• Protective ESD anti-static bubble packaging & safety outer box from ACPCB.
