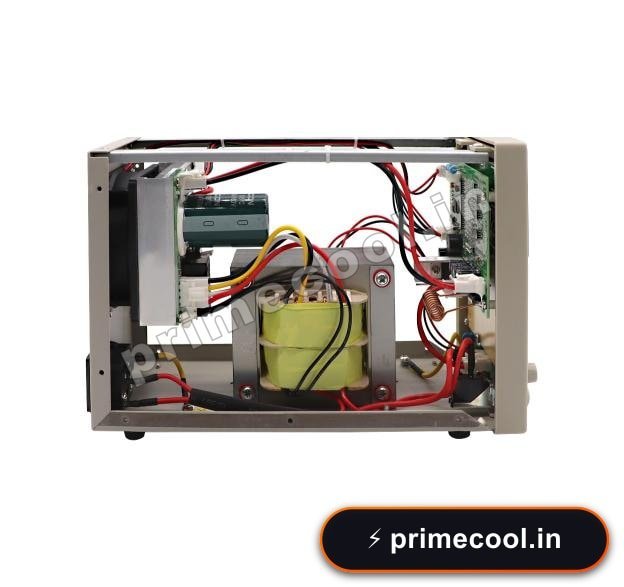

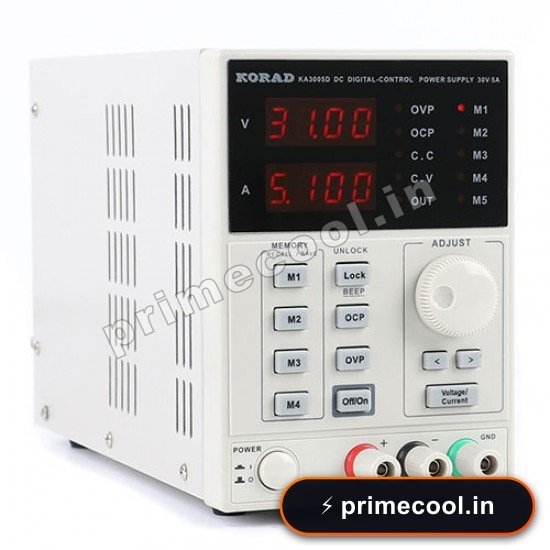

KORAD POWER SUPPLY — KORAD Programmable DC Power Supply KA3005DS ( 30V~5A )
Key Product Highlights & Features:
- Guaranteed Compatibility: Engineered to exact OEM specifications for KORAD and compatible inverter equipment.
- Pre-Tested Reliability: Rigorously inspected by ACPCB for thermal resilience, voltage stability, and signal integrity.
- Durable PCB Construction: Manufactured with high-grade fiberglass FR-4 substrate and anti-corrosive coating for prolonged lifespan.
- Direct Drop-in Replacement: Standardized pinouts and mounting holes for rapid, hassle-free installation.
- Technical Support: Backed by dedicated ACPCB inverter AC troubleshooting guidance and verified pinout records.
Technical Specifications
| Features | |
|---|---|
| 10mV/1mA high accuracy and resolution | Low noise and ripple |
| Built-in set of parameters stored | Outputs a switch control |
| Power and memory function | Keypad lock to prevent misuse |
| 10mV and 1mA resolution. | Professional power supply design with intuitive operability. |
| MODEL | KA3005DS |
| Operating Conditions | |
| Input voltage | 220V |
| Frequency range | 50- 60Hz |
| Operating temperature | 32-104 ℉ (0-40 ºC) |
| Operating humidity | < 80%RH |
| Storage temperature | 32-158 ℉ (0-70 ºC) |
| Storage humidity | < 70%RH |
| Stable Voltage | |
| Output Voltage Range | 0-30V Continuously adjustable |
| Setup Resolution | 10 mV |
| Setup Accuracy | <0.05% +20 mV |
| Ripple | < 1mVRMS |
| Read back Accuracy | 10 mV |
| Temp. Coefficient | < 0.1% + 10mV |
| Read back Temp. Coefficient | < 100 ppm+10 mV |
| Product Type | AC & Electronics Tools |
| Compatible Brand | KORAD |
| Condition | 100% Brand New & Factory Tested |
| Quality Standard | OEM Industrial Standard / RoHS Compliant |
| Testing Certification | QC Passed – Voltage & Current Load Tested |
Professional Installation Guidelines:
1. Always disconnect the main power supply and discharge high-voltage DC filter capacitors before handling or replacing electronic boards.
2. Ensure uniform application of premium thermal conductive paste between heatsinks and power semiconductor modules (IPM/IGBT).
3. Verify wiring harness connections against terminal labels prior to powering on the system.
Package Contents:
• 1 x KORAD POWER SUPPLY
• Protective ESD anti-static bubble packaging & safety outer box from ACPCB.
