Description

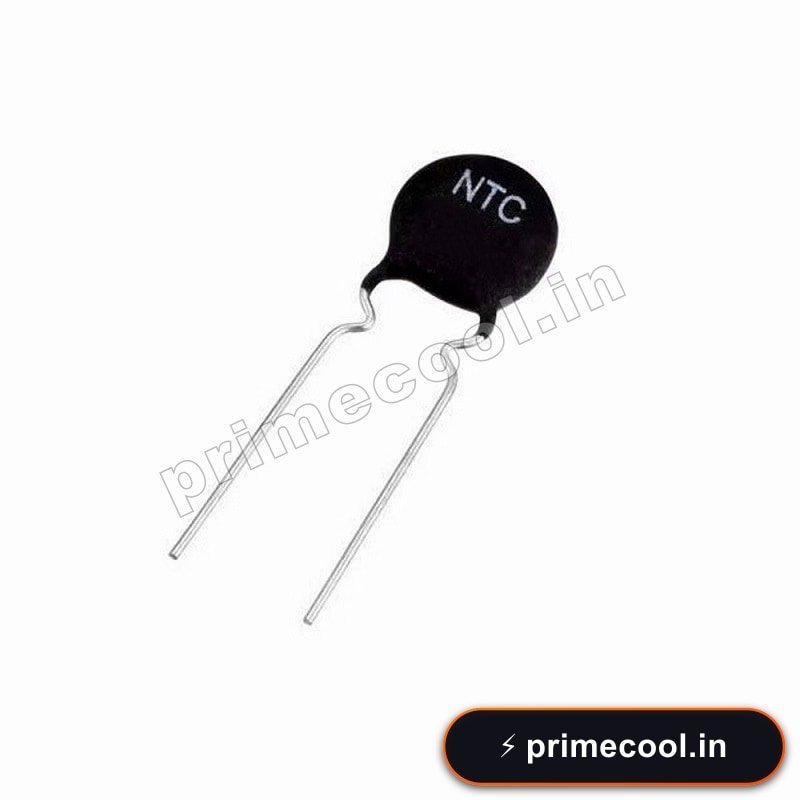

NTC/THERMISTOR 15D-15 (10PCS) — Features/Specs:
Key Product Highlights & Features:
- Guaranteed Compatibility: Engineered to exact OEM specifications for OEM / Universal and compatible inverter equipment.
- Pre-Tested Reliability: Rigorously inspected by ACPCB for thermal resilience, voltage stability, and signal integrity.
- Durable PCB Construction: Manufactured with high-grade fiberglass FR-4 substrate and anti-corrosive coating for prolonged lifespan.
- Direct Drop-in Replacement: Standardized pinouts and mounting holes for rapid, hassle-free installation.
- Technical Support: Backed by dedicated ACPCB inverter AC troubleshooting guidance and verified pinout records.
Technical Specifications
| Features/Specs | |
|---|---|
| Product | NTC Thermistor |
| Thermistor number | 15D-15 |
| Resistance value | 15 Ω (ohm) |
| Tolerance | ±1% |
| Disk size | 15mm |
| Number of pins | 2 |
| Mounting type | through hole |
| Thermistor temperature range | -55℃ to +200℃ |
| Mounting Type | Through Hole |
| Lead Spacing | 7.5 mm |
| Product Type | PCB Sensors |
| Compatible Brand | OEM / Universal |
| Condition | 100% Brand New & Factory Tested |
| Quality Standard | OEM Industrial Standard / RoHS Compliant |
| Testing Certification | QC Passed – Voltage & Current Load Tested |
Professional Installation Guidelines:
1. Always disconnect the main power supply and discharge high-voltage DC filter capacitors before handling or replacing electronic boards.
2. Ensure uniform application of premium thermal conductive paste between heatsinks and power semiconductor modules (IPM/IGBT).
3. Verify wiring harness connections against terminal labels prior to powering on the system.
Package Contents:
• 1 x NTC/THERMISTOR 15D-15 (10PCS)
• Protective ESD anti-static bubble packaging & safety outer box from ACPCB.
