Description

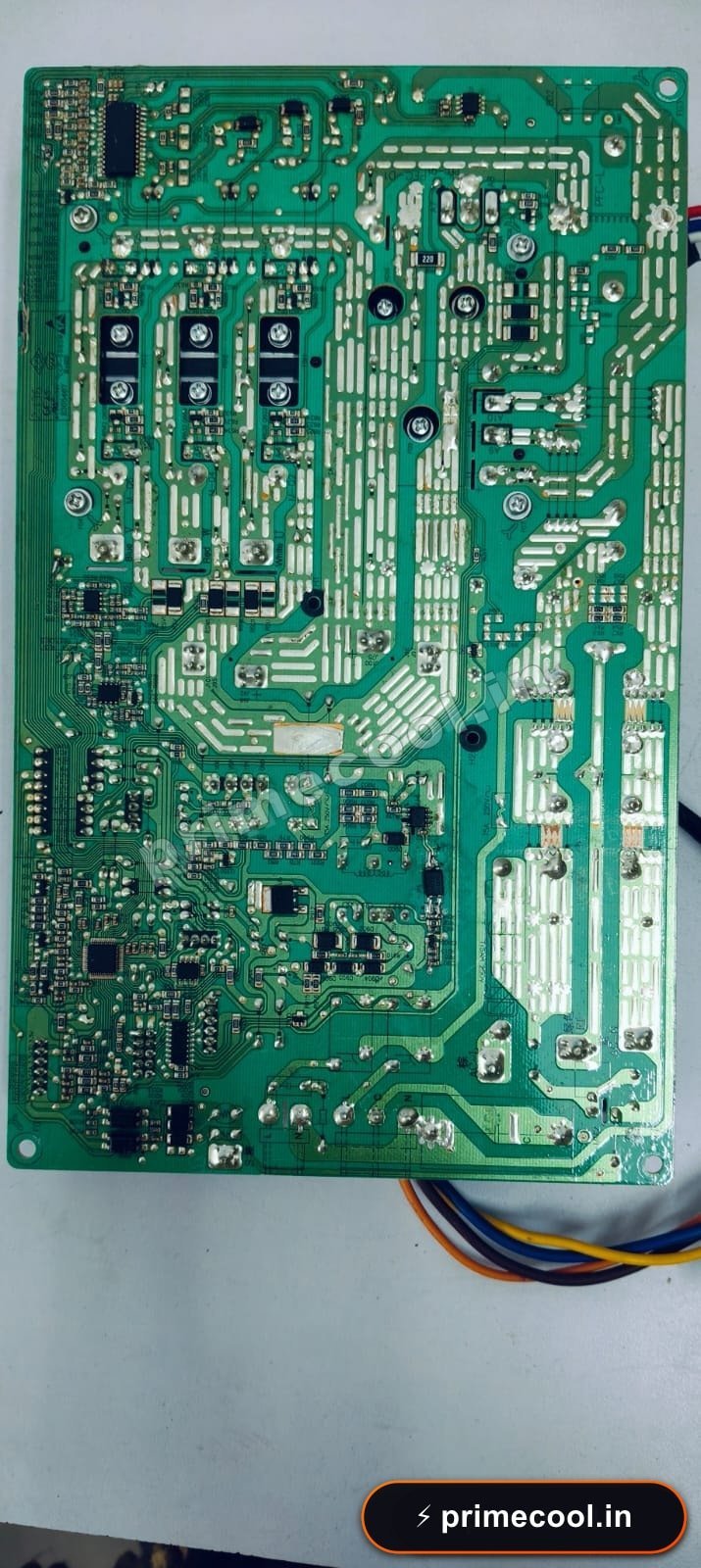

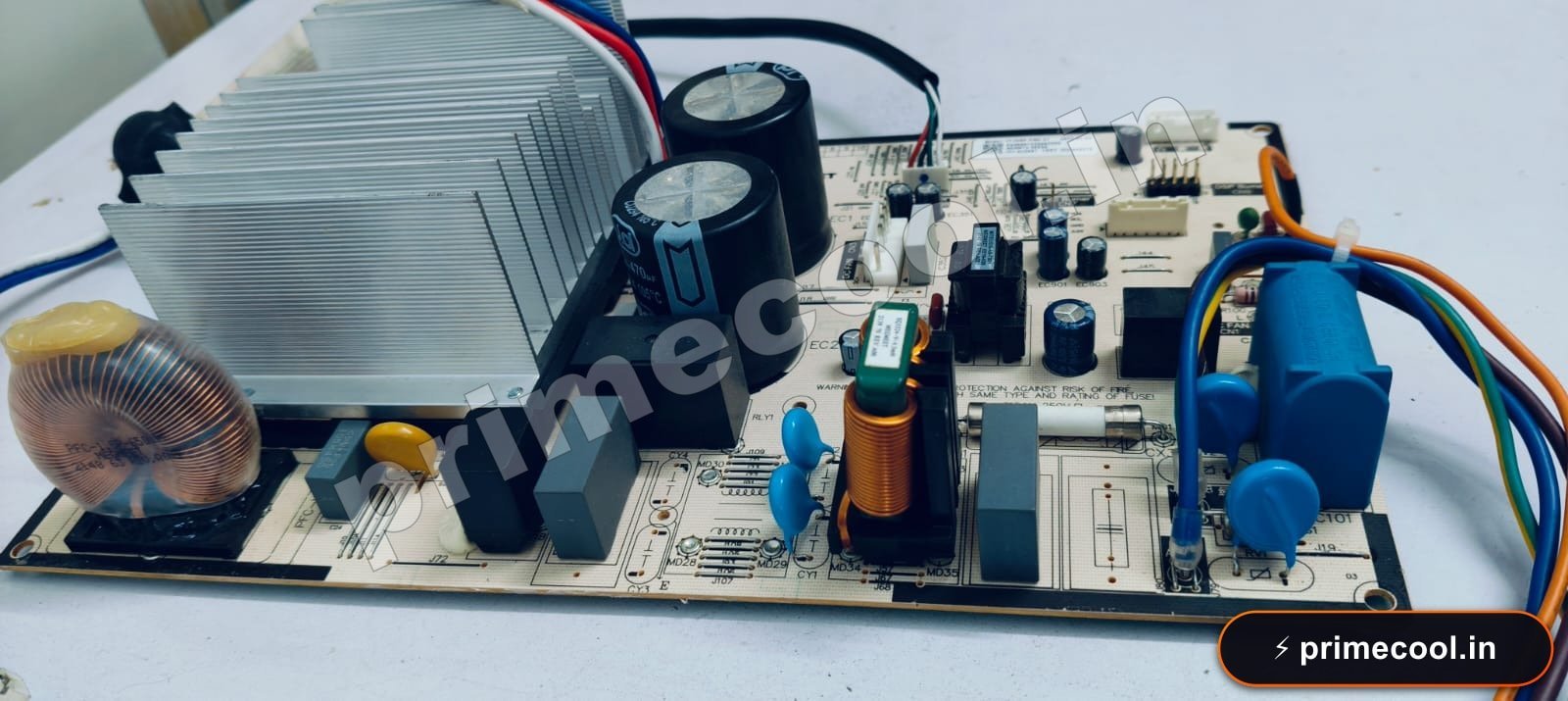

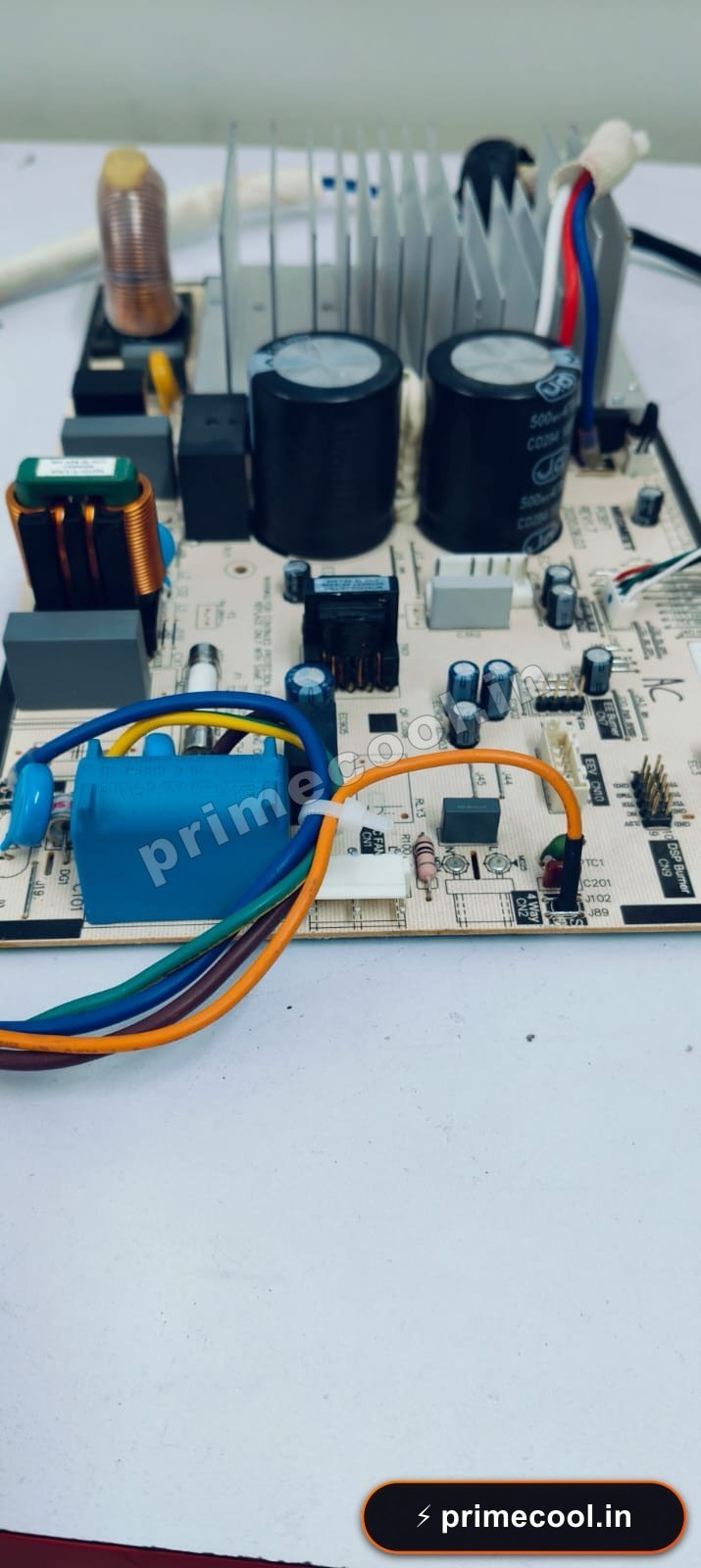

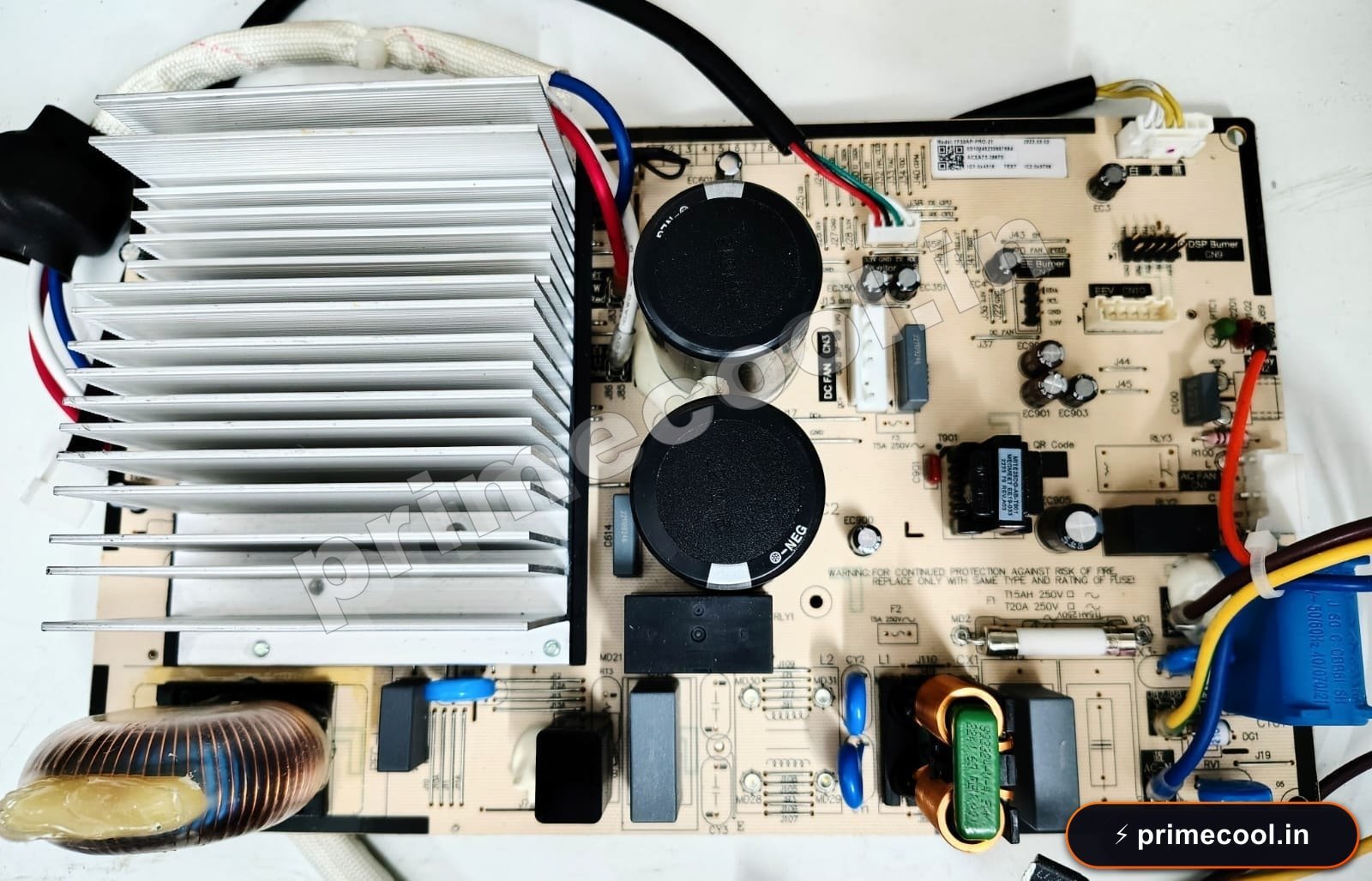

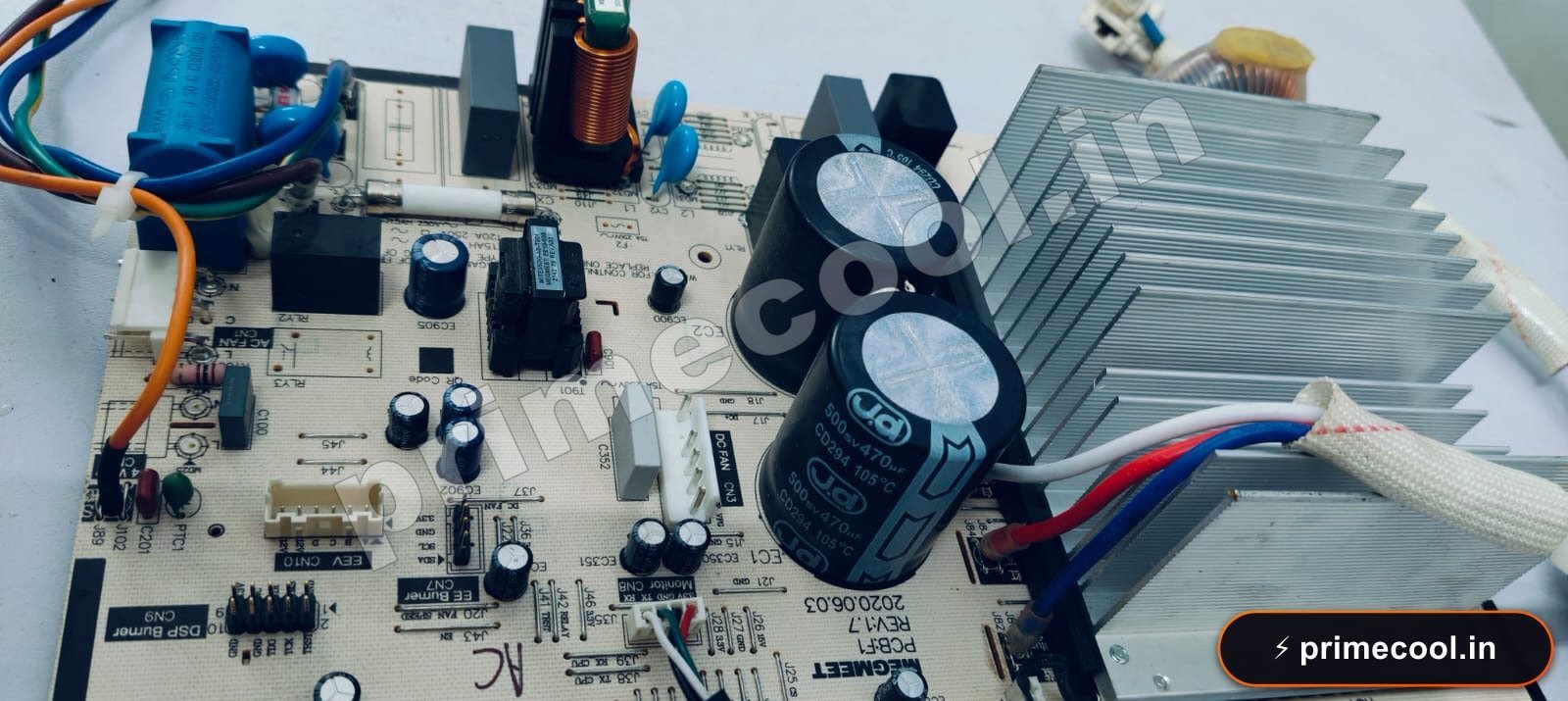

PANASONIC OUTDOOR AC PCB BOARD — SPECIFICATION :
Key Product Highlights & Features:
- Guaranteed Compatibility: Engineered to exact OEM specifications for PANASONIC and compatible inverter equipment.
- Pre-Tested Reliability: Rigorously inspected by ACPCB for thermal resilience, voltage stability, and signal integrity.
- Durable PCB Construction: Manufactured with high-grade fiberglass FR-4 substrate and anti-corrosive coating for prolonged lifespan.
- Direct Drop-in Replacement: Standardized pinouts and mounting holes for rapid, hassle-free installation.
- Technical Support: Backed by dedicated ACPCB inverter AC troubleshooting guidance and verified pinout records.
Technical Specifications

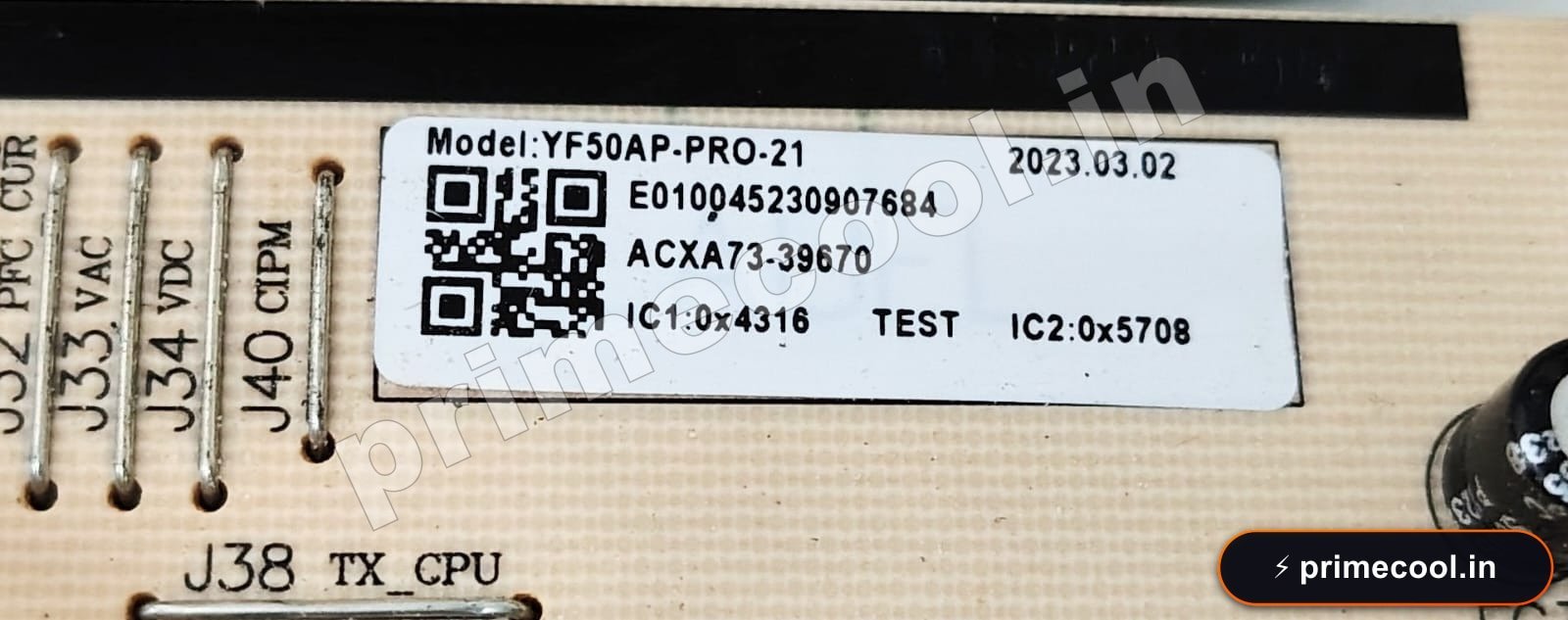

| MODEL | YF50AP-PRO-21 |
|---|---|
| Usage/Application | Circuit Board |
| Thickness | 3 mm |
| Current Type | AC |
| Shape | Rectangular |
| Packaging Type | Box |
| Frequency | 50 Hz |
| Type Of Tension | AC |
| Voltage | 230 V |
| Brand Name | Panasonic |
| Product Type | Outdoor AC PCB |
| Compatible Brand | PANASONIC |
| Condition | 100% Brand New & Factory Tested |
| Quality Standard | OEM Industrial Standard / RoHS Compliant |
| Testing Certification | QC Passed – Voltage & Current Load Tested |
Professional Installation Guidelines:
1. Always disconnect the main power supply and discharge high-voltage DC filter capacitors before handling or replacing electronic boards.
2. Ensure uniform application of premium thermal conductive paste between heatsinks and power semiconductor modules (IPM/IGBT).
3. Verify wiring harness connections against terminal labels prior to powering on the system.
Package Contents:
• 1 x PANASONIC OUTDOOR AC PCB BOARD
• Protective ESD anti-static bubble packaging & safety outer box from ACPCB.
