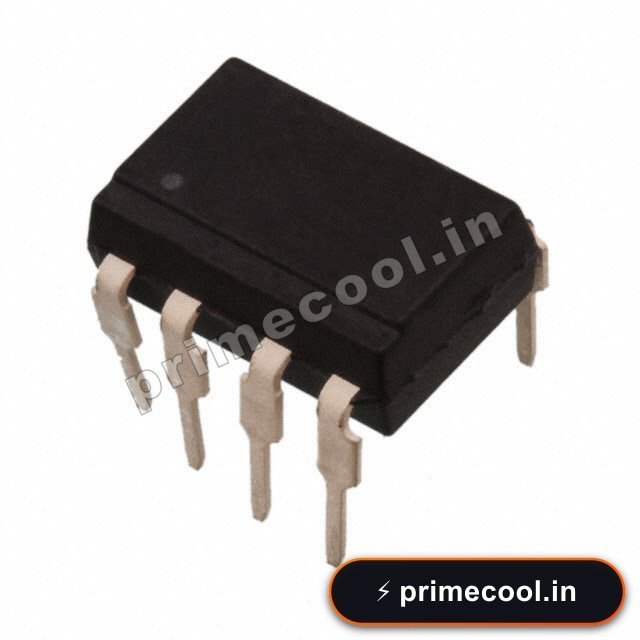

Switcher IC TLP620J (5PCS) — Switcher IC TLP620J
Key Product Highlights & Features:
- Guaranteed Compatibility: Engineered to exact OEM specifications for OEM / Universal and compatible inverter equipment.
- Pre-Tested Reliability: Rigorously inspected by ACPCB for thermal resilience, voltage stability, and signal integrity.
- Durable PCB Construction: Manufactured with high-grade fiberglass FR-4 substrate and anti-corrosive coating for prolonged lifespan.
- Direct Drop-in Replacement: Standardized pinouts and mounting holes for rapid, hassle-free installation.
- Technical Support: Backed by dedicated ACPCB inverter AC troubleshooting guidance and verified pinout records.
Technical Specifications
| Switcher IC TLP620J | Voltage – Isolation :-5300Vrms |
|---|---|
| Current Transfer Ratio (Min) | -100% @ 5mA |
| Current Transfer Ratio (Max) | -600% @ 5mA |
| Turn On / Turn Off Time (Typ) – | Rise / Fall Time (Typ) :-4µs, 3µs |
| Input Type | -AC, DC |
| Output Type | -Transistor |
| Voltage – Output (Max) | -55V |
| Current – Output / Channel | -50mA |
| Voltage – Forward (Vf) (Typ) | -1.15V |
| Current – DC Forward (If) (Max) | -50 mA |
| Vce Saturation (Max) | -400mV |
| Product Type | Switcher IC |
| Compatible Brand | OEM / Universal |
| Condition | 100% Brand New & Factory Tested |
| Quality Standard | OEM Industrial Standard / RoHS Compliant |
| Testing Certification | QC Passed – Voltage & Current Load Tested |
Professional Installation Guidelines:
1. Always disconnect the main power supply and discharge high-voltage DC filter capacitors before handling or replacing electronic boards.
2. Ensure uniform application of premium thermal conductive paste between heatsinks and power semiconductor modules (IPM/IGBT).
3. Verify wiring harness connections against terminal labels prior to powering on the system.
Package Contents:
• 1 x Switcher IC TLP620J (5PCS)
• Protective ESD anti-static bubble packaging & safety outer box from ACPCB.
