Description

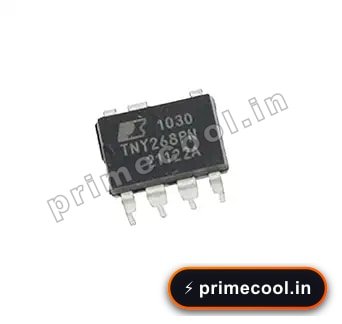

Switcher IC TNY268PN (5PCS) — TNY268PN IC-Power Integrations Off Line Switcher
Key Product Highlights & Features:
- Guaranteed Compatibility: Engineered to exact OEM specifications for OEM / Universal and compatible inverter equipment.
- Pre-Tested Reliability: Rigorously inspected by ACPCB for thermal resilience, voltage stability, and signal integrity.
- Durable PCB Construction: Manufactured with high-grade fiberglass FR-4 substrate and anti-corrosive coating for prolonged lifespan.
- Direct Drop-in Replacement: Standardized pinouts and mounting holes for rapid, hassle-free installation.
- Technical Support: Backed by dedicated ACPCB inverter AC troubleshooting guidance and verified pinout records.
Technical Specifications
| TinySwitch-II Features Reduce System Cost | – Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs; Built-in circuitry practically eliminates audible noise with ordinary dip-varnished transformer; Programmable line undervolt |
|---|---|
| EcoSmart– Extremely Energy Efficient | – No-load consumption <50 mW with bias winding and <250 mW without bias winding at 265 VAC input |
| High Performance at Low Cost | – High voltage powered – ideal for charger applications; High bandwidth provides fast turn on with no overshoot |
| Product Type | Switcher IC |
| Compatible Brand | OEM / Universal |
| Condition | 100% Brand New & Factory Tested |
| Quality Standard | OEM Industrial Standard / RoHS Compliant |
| Testing Certification | QC Passed – Voltage & Current Load Tested |
Professional Installation Guidelines:
1. Always disconnect the main power supply and discharge high-voltage DC filter capacitors before handling or replacing electronic boards.
2. Ensure uniform application of premium thermal conductive paste between heatsinks and power semiconductor modules (IPM/IGBT).
3. Verify wiring harness connections against terminal labels prior to powering on the system.
Package Contents:
• 1 x Switcher IC TNY268PN (5PCS)
• Protective ESD anti-static bubble packaging & safety outer box from ACPCB.
